Whether for a temporary installation for an event or a permanent installation to equip your venue, we provide the highest level of comfort and the safest solutions, fully compliant with your requirements.
Our engineers take all your needs into consideration, including:

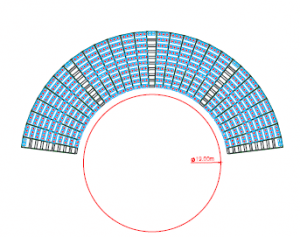

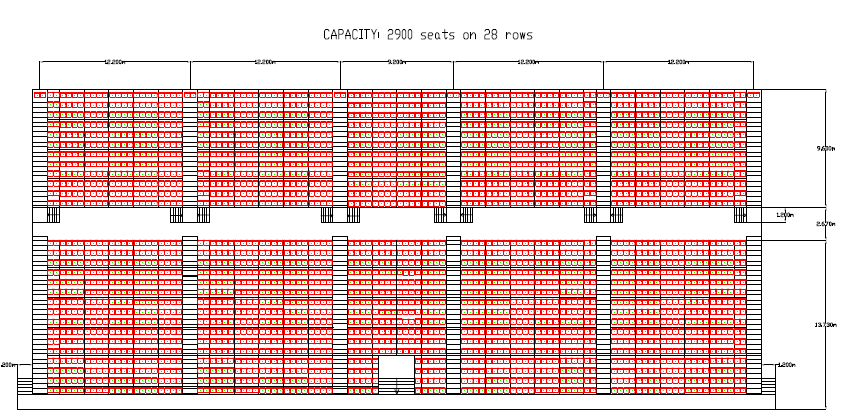

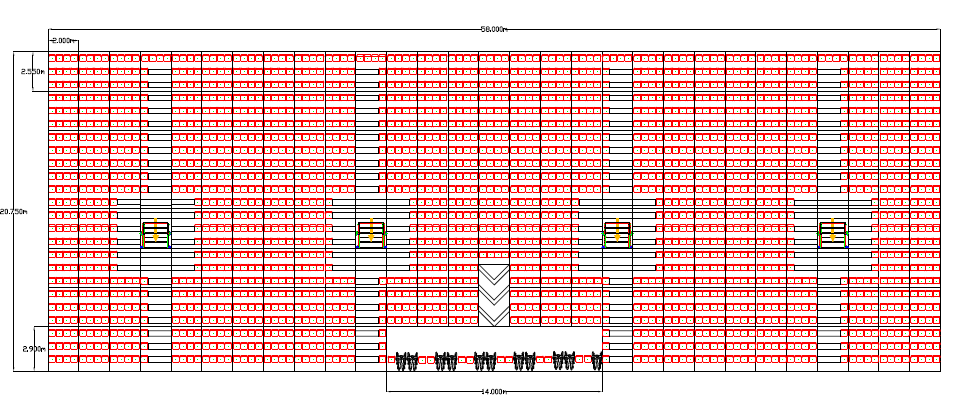

- Seating capacity
- Front access and access via vomitories

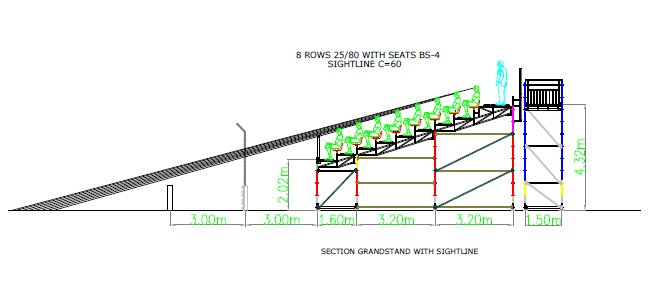

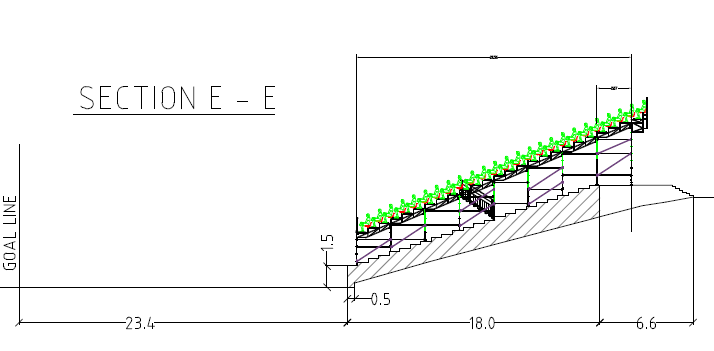

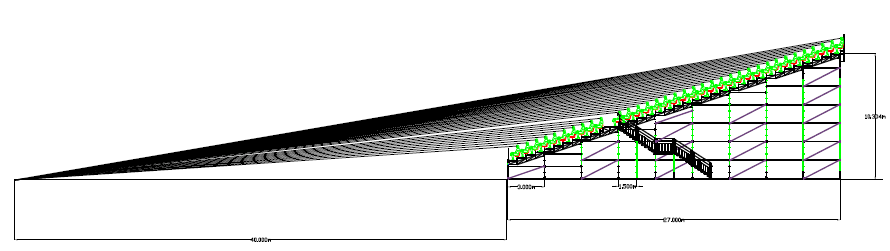

- Sightlines

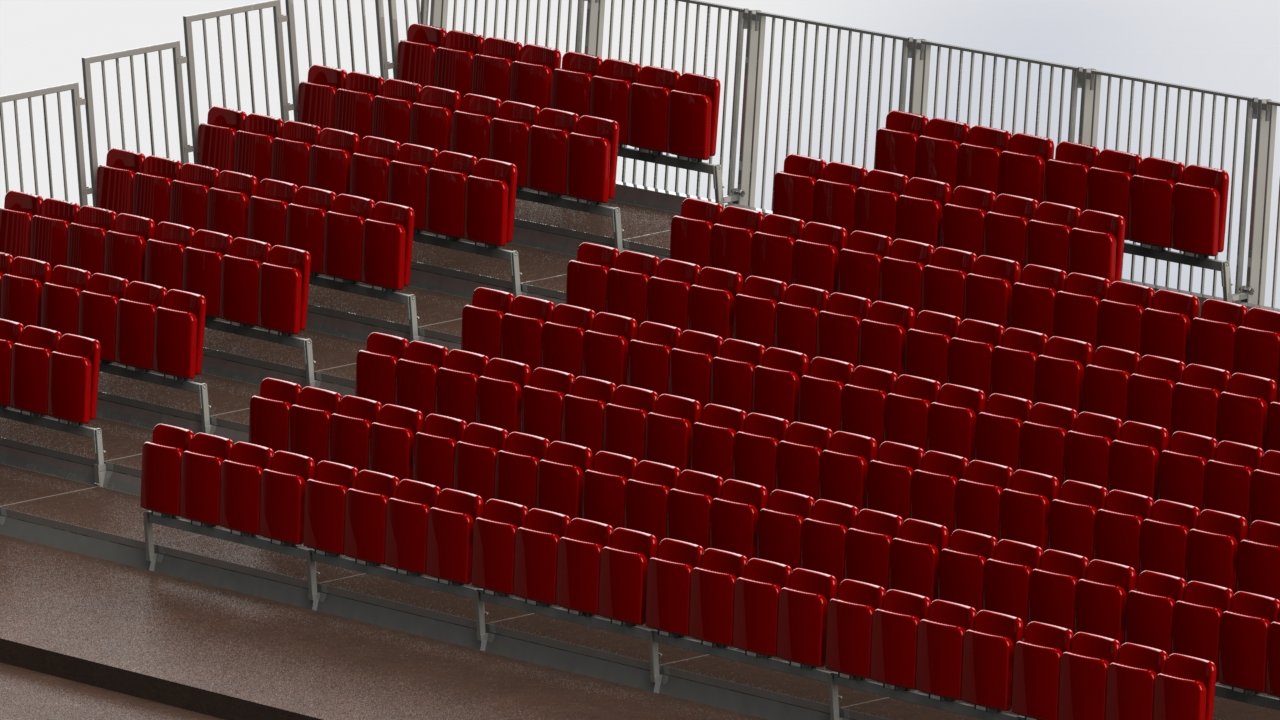

- Bench seating, flat seats, bucket seats, or tip-up seats
They also integrate a wide range of equipment, such as:
- Access ramps and platforms for people with disabilities
- VIP seating
- Press boxes
- Camera platforms
- FOH booths
As well as specific facilities, including:
- Changing rooms
- Public restrooms

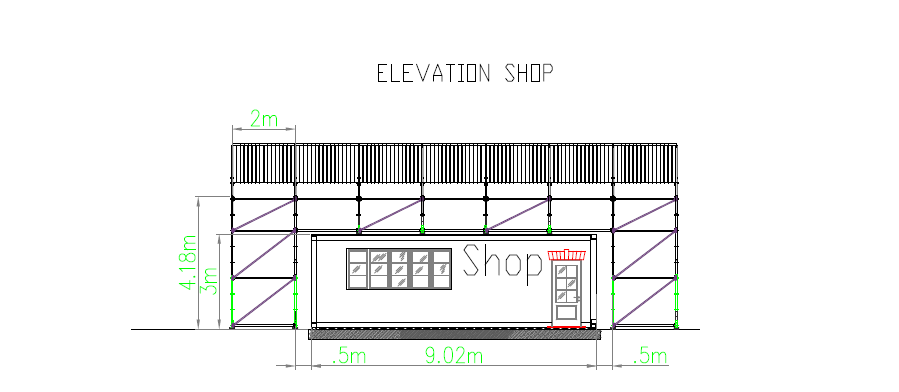

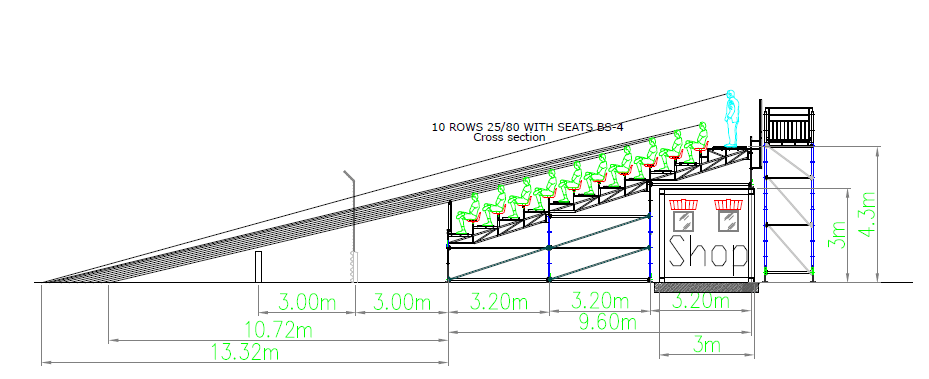

- Retail units
- Storage rooms

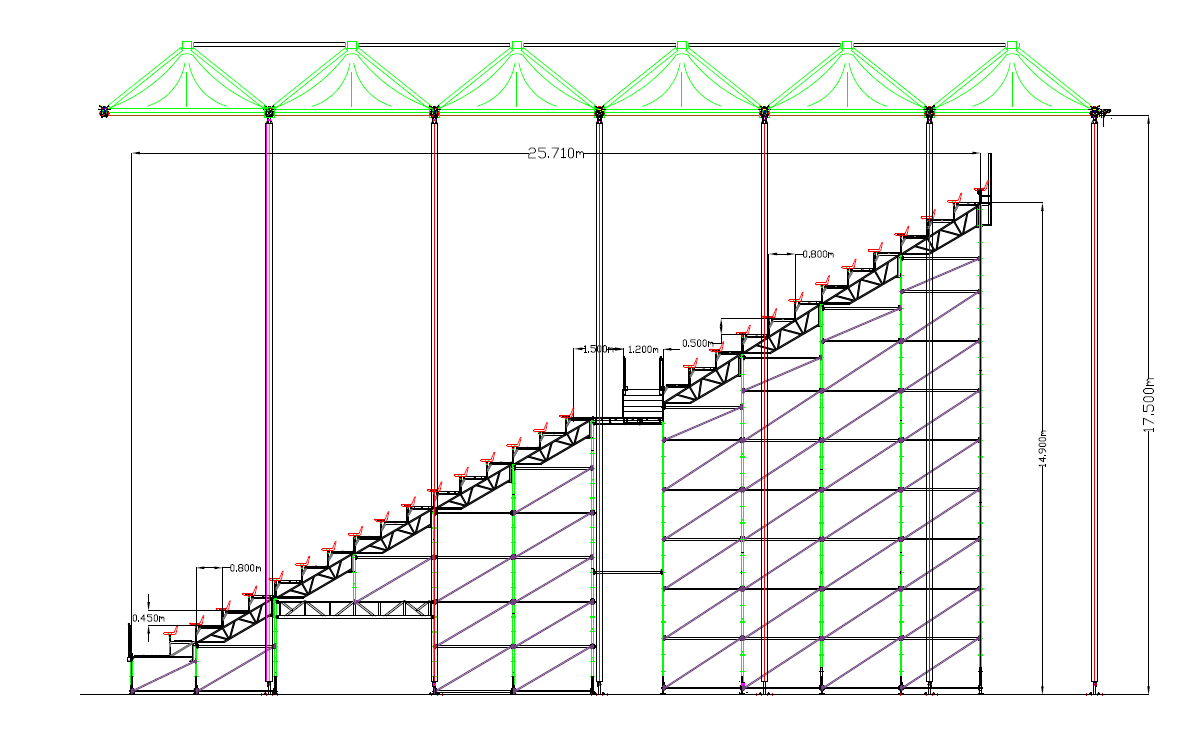

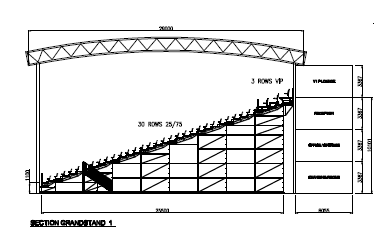

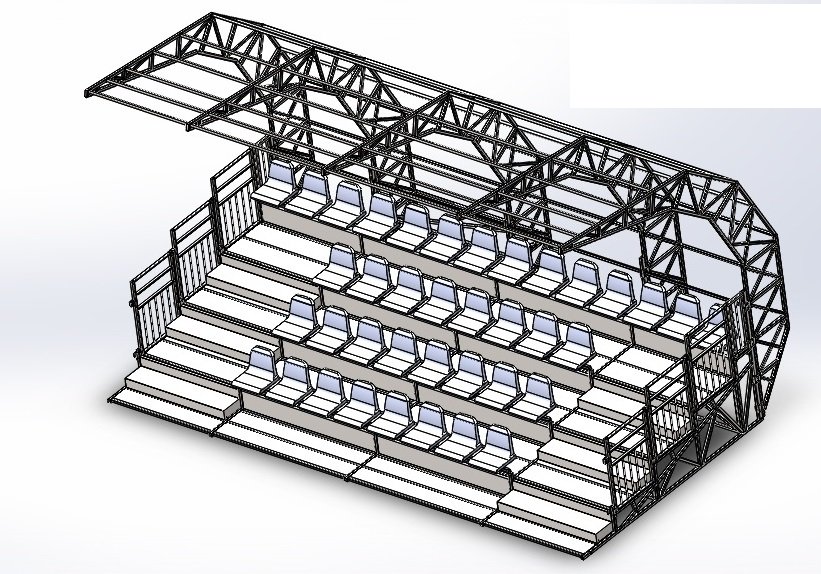

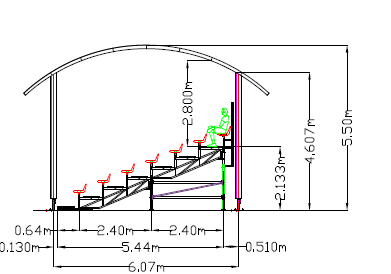

Permanent or temporary roofing solutions can also be incorporated.
These are the parameters that our highly versatile grandstand designs allow our engineers to address, enabling us to deliver fully bespoke solutions tailored to your requirements.
TECHNICAL SPECIFICATIONS
- Width*depth: 1,800*3,000mm / 2,000*2,460mm / 2,000*3,200mm / 2,000*3,280mm
- Riser: 125mm / 250mm / 375mm
- Platform Depth: 750mm / 800mm / 820mm / 1,000mm
- Seat Spacing: 450mm / 500mm / 600mm
- Load Capacity: 5kN/sqm
- Dead Load: 0.25kN/sqm
TWENTY STRUCTURES grandstands comply with the following standards:
- Europe: EN 13200-6
- USA: NFPA and UBC
- UK: BS5950 – BS6399 parts 1 & 2 – Green Guide – Purple Guide
